DHY22KSEM

DHY22KSEM

SPECIFICATIONS

Model DHY22KSEm
Power Output kW/BHP/kVA 22kW/27.5kVA
Start Electric
Engine Displacement CC 3298cc
Engine Make Hyundai
Engine Type HY4100 diesel engine
Fuel Tank Capacity 93 Litres
Fuel Type diesel
Features Silenced Weather Proof Canopy
Noise Level in dB(A) 65dB(A) @ 7m
Run Time 21 Hours @ 50% Load
Voltage 50Hz 240
Connection Method 3 x 230V/32A & Busbar
Warranty 1 Year
Dimensions L x W x H (mm) 2200 x 950 x 1240
Weight 870 kg
SKU: DHY22KSEM Category:

Description

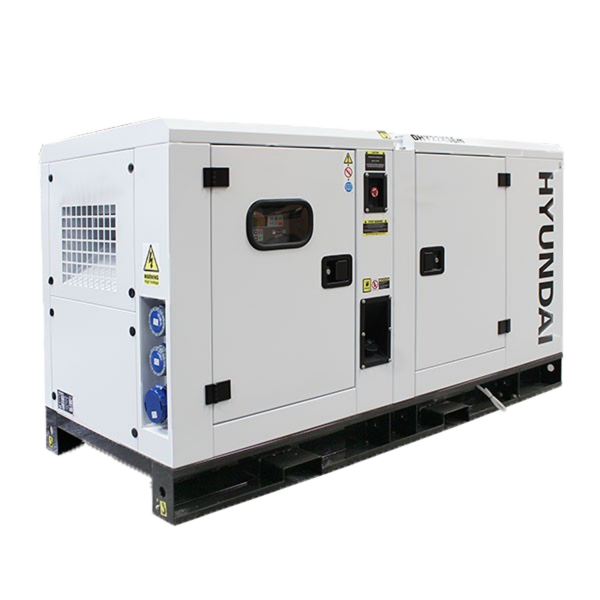

This diesel generator would be suitable for powering a large home or office, or a number of site cabins on a construction site, using it’s powerful 27.5kVA output with a single phase supply. Running at 1500rpm it is a very low stressed generator and has a very long lifespan, as the rev rate of the engine is typically half that of a conventional diesel generator of this size.

All standard Hyundai 1500rpm diesel generators above 15kw are designed to be used as stationary generators for standby or prime power supply. The DHY22KSEM Diesel Generator is part of the Hyundai silenced range, where due to the weatherproof acoustic body, large exhaust and the the economical engine, the noise levels whilst running are kept to a minimum, making for a very quiet run considering the size and output.

All Hyundai 1500rpm diesel generator sound proof canopies undergo an anti-corrosion painting process called electrophoretic painting. This process ensures all areas of the canopy have an evenly applied thickness of paint, ensuring maximum corrosion protection.

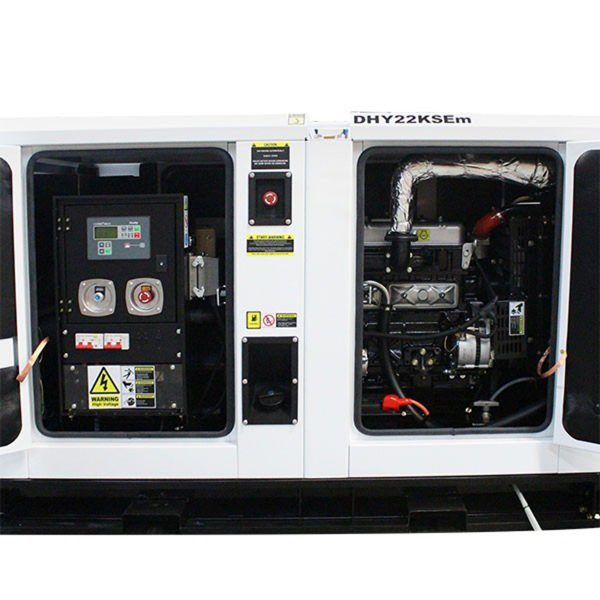

As with other models in the Hyundai range, the brushless AVR alternator produces a smooth power output, has a digital control panel, offering accurate overload and engine protection and includes a large base-level fuel tank, which is easily filled up from the outer shell of the generator, and makes for an extended run due to it’s volume.

Please contact Genelite on 1300 305 912 for more details on this model, and other generators in our range.
